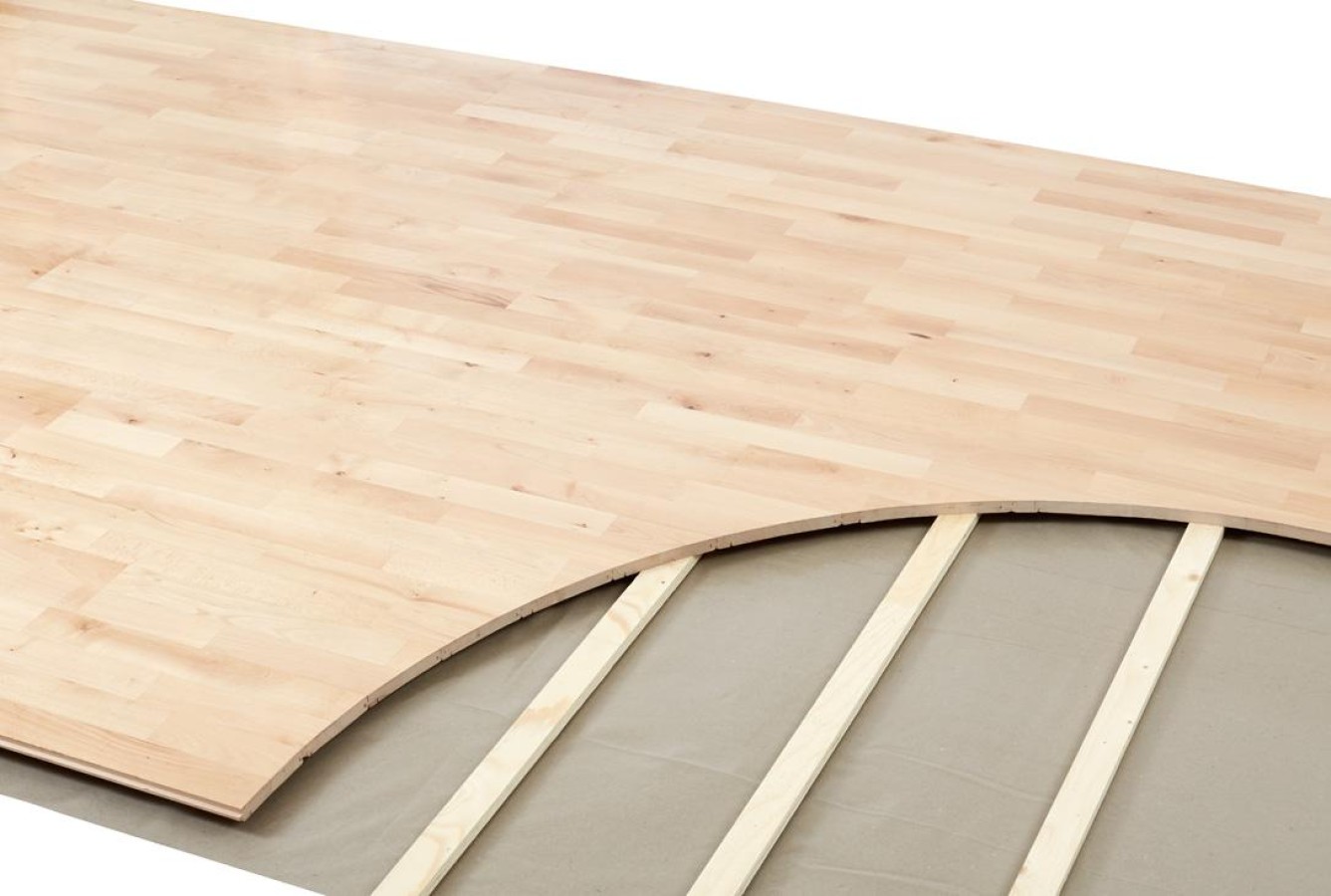

The Unobat 50 sports floor is a high performance batten based system designed for use over flat subfloors. The 22 mm solid hardwood floorboards are fastened to a resilient subfloor consisting of single layer battens with pre-attached special designed shock absorbing foam strips. The shock absorbing foam strips are inset into a “U” shaped channel on the underside of the batten. This design creates a built-in stop block, ensuring the long-term resilience of the system.
Performance:
The floor system is an area elastic sports floor with a high level of shock absorption and resilience. Very suitable for multifunctional sports halls, arenas and squash.
Junckers Unobat 50 is tested and approved according to:
– The European Sports Norm EN 14904:A4
– FIBA Level 1.

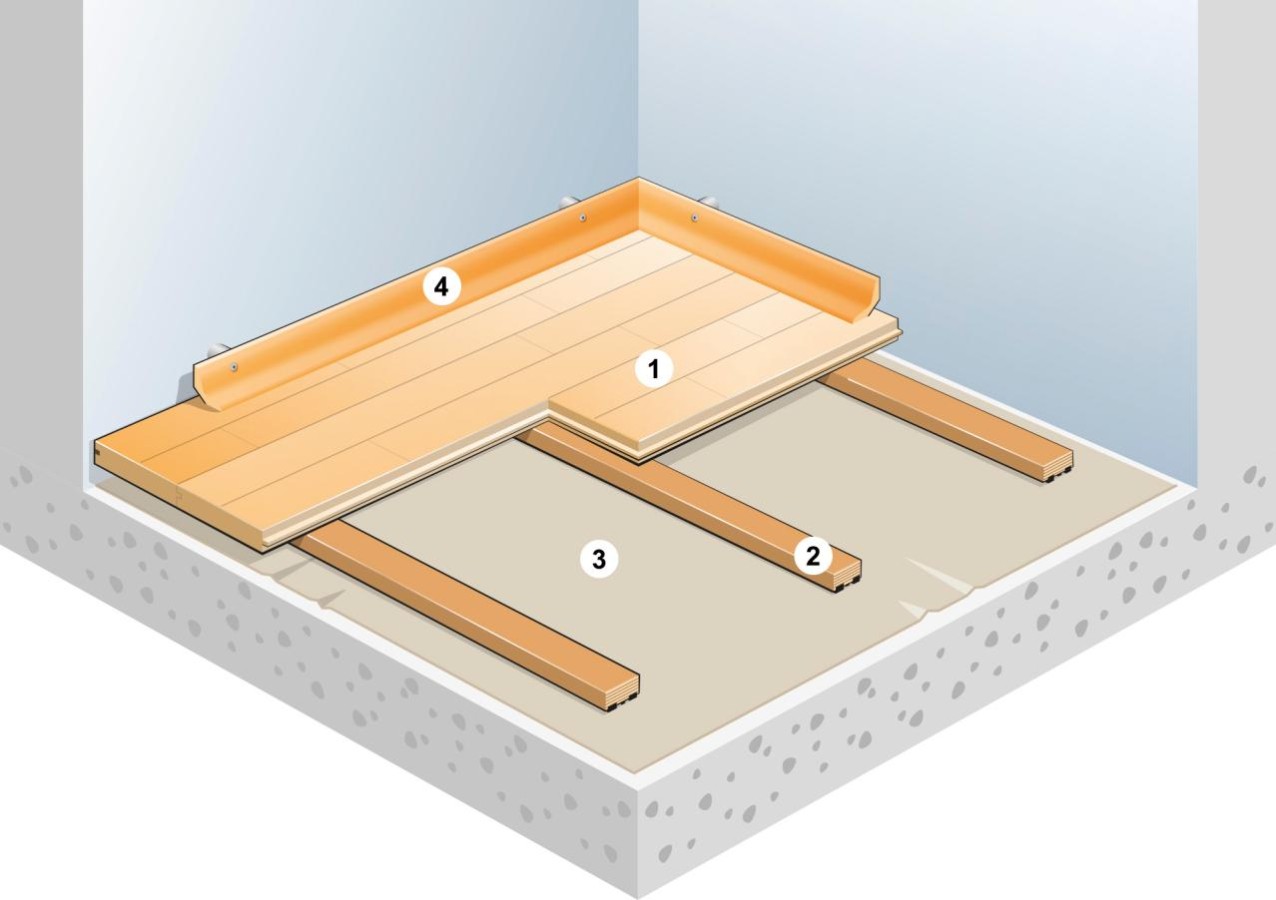

SYSTEM COMPONENTS
1. 22 x 129 x 3700mm floorboards
2. Unobat 50 batten: 28 x 45 x 3600 mm, shock absorbing foam strips included
3. 0.2 mm SylvaThene moisture barrier
4. Combi sports skirting
Facts
| PERFORMANCE | Area-elastic according to EN 14904 class A4 |
| USE | All types of sport
Multi-functional sports halls From small leisure centres to large arenas Refurbishment |
| FLOORBOARD TYPE | Prefinished 22mm 2-strip solid hardwood |
| SUBCONSTRUCTION | Single layer batten system |
| BATTEN CENTRE, C/C | 336 mm |
| REQUIRED SUBFLOOR | Even |
| CONSTRUCTION HEIGHT | 50 mm |
| JUNCKERS 25 YEARS FATIGUE TEST | Yes |
| SANDING AND RE-SEALING | Yes to bare wood 8-10 times |
| SUITABLE FOR UNDERFLOOR HEATING | Yes |
